 PV
Series CRT/LCD Privacy Filter |
| PV
Series Privacy Filter makes use of
the optical technology to narrow down
the viewing angle so that only the
person sitting directly in front of
the monitor could see the on-screen
data clearly. Should other passers-by
try to see your screen from the left
or right side, the PV-Series privacy
filter will automatically turn into
misty so as to block their peep. |
|
|
| VL
series
Extremely Low Reflection: |
| Feature: |
| 1. |
Adjustable
hanger for CRT/LCD monitor |
| 2. |
Transmittance
45% |
| 3. |
Reduce Glare
& Reflection 95% |
| 4. |
Clear viewing
area: ˇÓ30˘X from central axis |
| 5. |
Block bystanderˇ¦s
peep |
| 6. |
Cut UV ray,
reflection, and glare |
| 7. |
Shield ELF/VLF
electrical field radiation |
|
|
 |
|
| Available
Size: |
| ITEM
No. |
PV-150 |
PV-170 |
PV-190 |
PV-200 |
| Size |
15" |
17" |
19" |
20" |
| Length (mm) |
240 |
290.5 |
402 |
346 |
| Width (mm) |
316 |
354.5 |
322 |
451 |
| Height (mm) |
3.6 |
3.6 |
3.6 |
3.6 |
|
|
|
LM series CRT/LCD anti-radiation & anti-glare
filter
|
| Feature: |
| 1. |
Adjustable hanger for CRT/LCD
monito |
| 2. |
Transmittance
50% |
| 3. |
Reduce Glare
& Reflection 95% |
| 4. |
Eliminate static
charge and dust build-up |
| 5. |
Shield ELF/VLF
electrical field radiation |
| 6. |
Block harmful
UV rays |
| 7. |
Enhance screen
contrast and eliminate flicker |
|
|
 |
|
| Available
Size: |
| ITEM
No. |
LM-150 |
LM-170 |
LM-190 |
LM-200 |
| Size |
15" |
17" |
19" |
20" |
| Length (mm) |
240 |
290.5 |
402 |
346 |
| Width (mm) |
316 |
354.5 |
322 |
451 |
| Height (mm) |
3.6 |
3.6 |
3.6 |
3.6 |
|
|
|
VN/VL
Series LCD/NB Protective Filter
|
| VL
Series Extremely Low
Reflection: |
| Feature:
|
| 1. |
Frameless type |
| 2. |
Suitable for
LCD Monitor/Notebook |
| 3. |
Block 99.7%
reflection |
| 4. |
Allow 88% transmittance |
| 5. |
Eliminate
harmful UV ray |
| 6. |
Single side
AG & double side AR coatings |
| 7. |
Substrate material
Polycarbonate in 0.5mm thickness |
|
|
 |
|
| Available
Size: |
| ITEM
No. |
VL-121 |
VL-133 |
VL-141 |
VL-150 |
VL-170 |
VL-190 |
| Size |
12.1" |
13.3" |
14.1" |
15" |
17" |
19" |
| Width (mm) |
247 |
271 |
287 |
305 |
339 |
379 |
| Height (mm) |
184 |
204 |
215 |
228 |
271 |
303 |
|
|
| |
VN
series Non-Glare : |
| |
| 1. |
Frameless type |
| 2. |
Suitable for
LCD Monitor/Notebook |
| 3. |
Block 95% reflection |
| 4. |
Allow 80% transmittance |
| 5. |
Eliminate
harmful UV ray |
| 6. |
Single side
AG treatment |
| 7. |
Substrate
material Polycarbonate in 0.5mm
thickness |
|
|
|
|
| Available
Size: |
| ITEM
No. |
VN-121 |
VN-133 |
VN-141 |
VN-150 |
VN-170 |
VN-190 |
| Size |
12.1" |
13.3" |
14.1" |
15" |
17" |
19" |
| Width (mm) |
247 |
271 |
287 |
305 |
339 |
379 |
| Height (mm) |
184 |
204 |
215 |
228 |
271 |
303 |
|
|

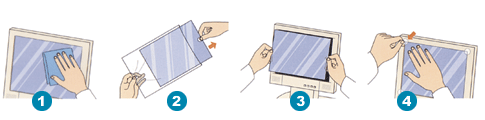

| Installation
Step |
 |
| 1. |
Clean LCD
Screen |
| 2. |
Take out filter form plastic
bag. |
| 3. |
Follow up indication label
to find front side for installation. |
| 4. |
Use transparent sticker
to fix four corner of filter on display
terminal. |
|
| |
